Converting Waste Tires into Renewable Rubber & Steel Resources

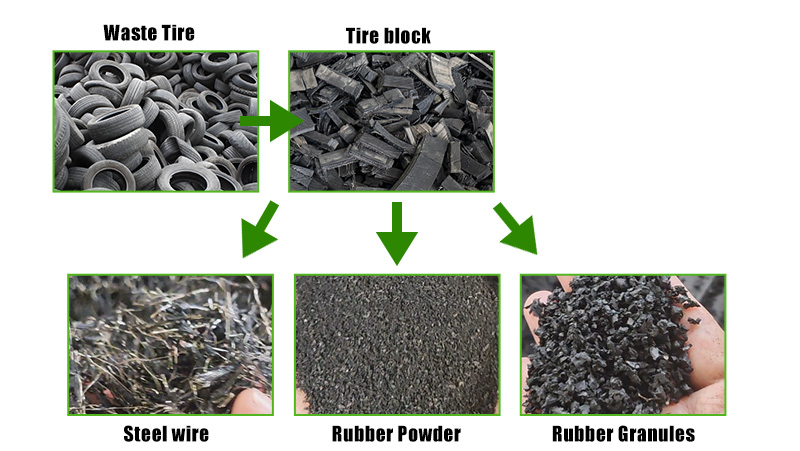

This environmentally friendly production line is designed to process waste tires through crushing, separation, and granulation. It converts discarded tires into high-value rubber particles, rubber powder, and steel wire,achieving 100% resource utilization.
🔘 Rubber Particles
Used for rubber tiles, athletic tracks, waterproof coatings, and modified asphalt additives.
🌫️ Rubber Powder
Ideal for new tire production, rubber fittings, and improving wear resistance in plastics.
🏗️ Steel Wire
Recycled as raw material for steelmaking or used to enhance concrete strength.
| Capacity (h) | 300-400 kg/h | 500 kg/h | 1000 kg/h |
|---|---|---|---|
| Occupied Area | 100 ㎡ | 200 ㎡ | 300 ㎡ |
| Total Power | 115 kw | 124 kw | 378 kw |
| Processing Range | ≤ 800 mm | ≤ 800 mm | ≤ 1200 mm |
| Discharge Size | 2mm – 40 mesh | ||
| Capacity (h) | 500 kg/h | 1000 kg/h (1t/h) |
|---|---|---|
| Occupied Area | 60-70 ㎡ | 80-100 ㎡ |
| Total Power | 176 kw | 294 kw |
| Processing Range | ≤ 800 mm | ≤ 1200 mm |
| Discharge Size | 1 – 4 mm | |
| Operators Needed | 1 – 2 persons | |
Our production lines are fully customizable based on your specific output requirements. Whether you need Rubber Granules for sports tracks or Fine Rubber Powder for asphalt modification, we offer tailored
designs from 300kg/h to 1000kg/h capacities.
Eco-Friendly Tire Recycling Solutions for a Sustainable Future.
“`
