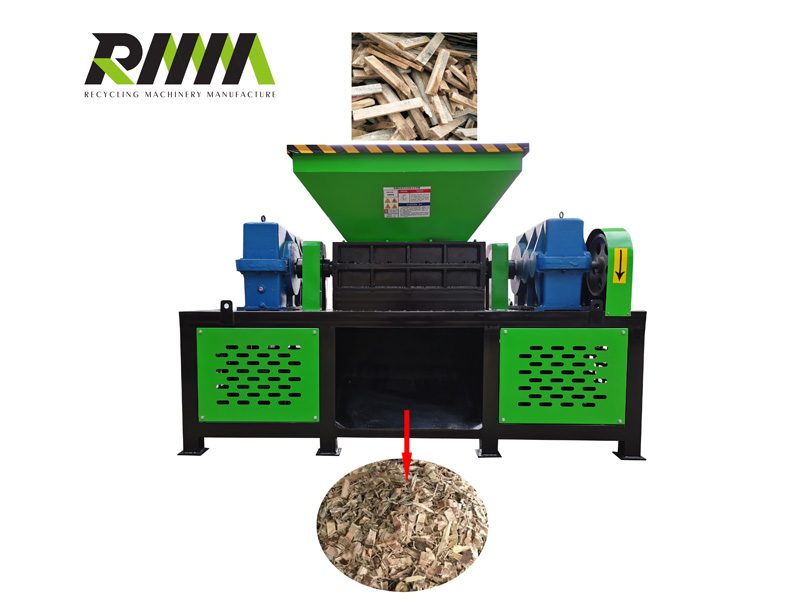

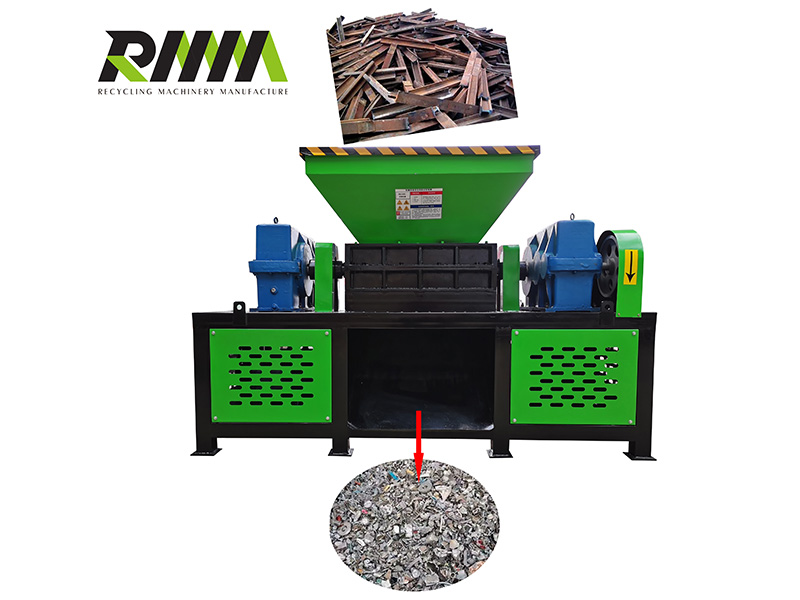

Double Shaft Shredder Machine

Shredding equipment reduces materials to the required size by shearing, shredding, cutting, etc., and is widely used in solid waste disposal and recycling industries. Different from the crushing equipment, the shredding equipment is mainly used to process tough and ductile materials. There are two-axis, four-axis, coarse crushing, fine crushing and other models to choose from. It can be operated independently or can be combined into a production line to work together.
Share:
Principle of Double Shaft Shredder

The blades in the double-shaft shredder use super-strength refined alloy knives. This kind of blade is a meshing blade, forming a pair of rollers. When the metal enters the inside of the double-shaft shredder, the rollers move in opposite directions to shred the metal block. when

When shredding is not possible, the dual-shaft shredder device will intelligently rotate, spit out the raw materials, and bite again. Until it is shredded into small pieces, it can be discharged from the discharge port to stop, and the above-mentioned shredding operation is carried out from the beginning for materials that cannot meet the requirements. When the material enters the shredding bin, the double-shaft shredder equipment will intelligently shred the material from the thin position, and so on, until the hard part of the material is completely shredded and stopped.

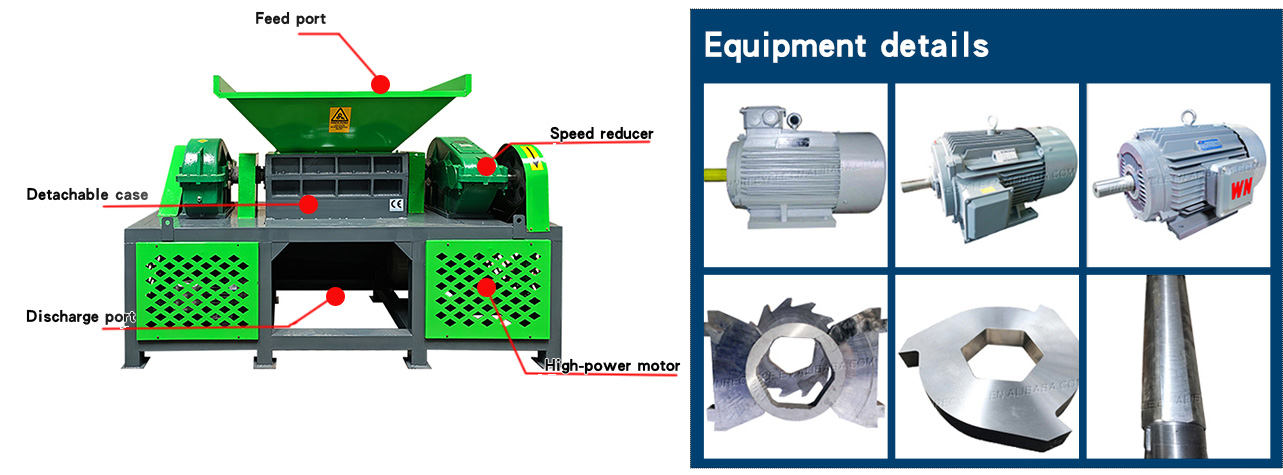

Double shaft crusher details

In fact, the core principle of the dual-shaft shredder principle is to use the basic principle of tool striking. Driven by a high-speed and high-torque motor, the hammer on the rotor of the main machine takes turns to strike the object to be crushed into the cavity, and the object to be crushed Tear into broken pieces that meet specifications.

Applicable materials

Shredding effect display

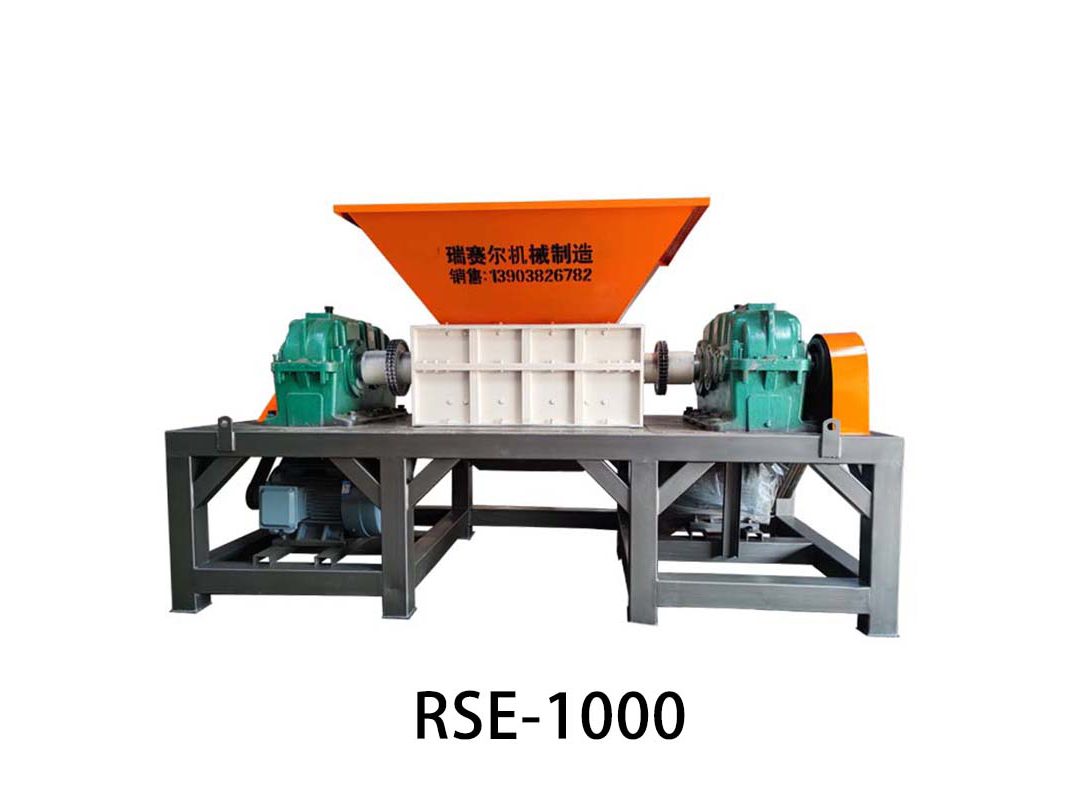

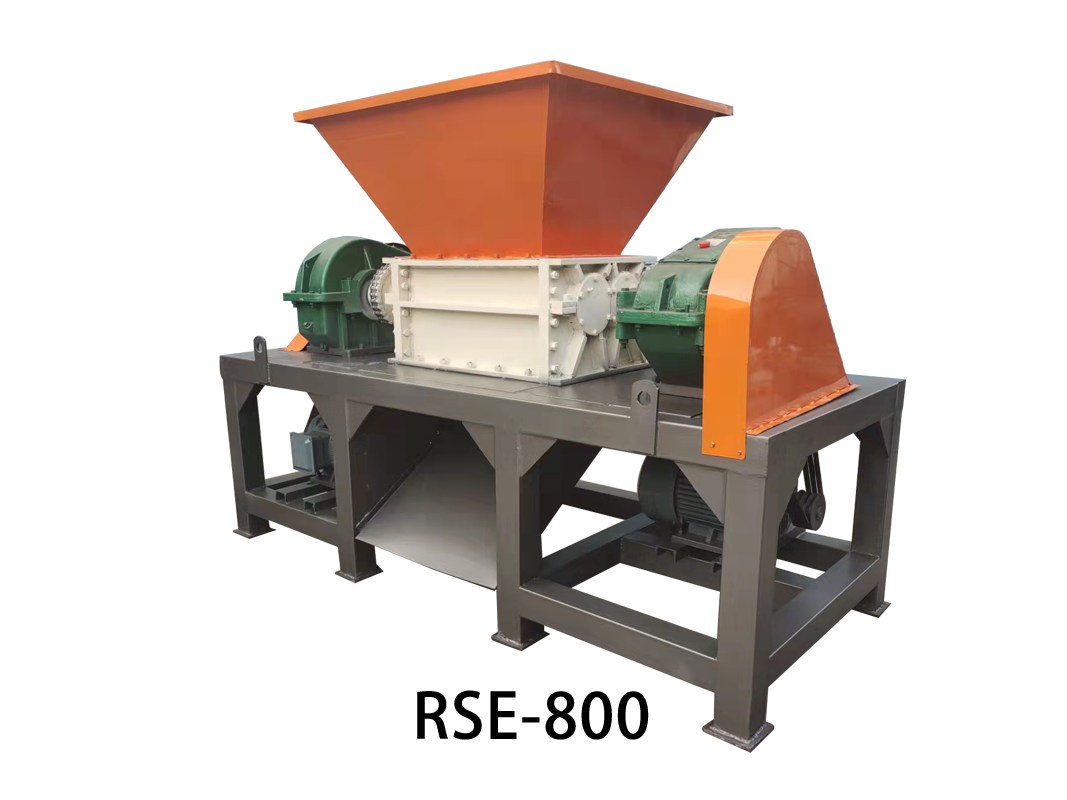

MODELRSE-600RSE-800RSE-1000RSE-1200RSE-1400
CUTTER DIAMETER190MM260MM400MM500MM550MM
SPINDLE DIAMETER100MM160MM200MM240MM260MM
SPINDLE MATERIAL 55CRSI55CRSI55CRSI55CRSI55CRSI
POWER7.5KW*222KW*237KW*245KW*275KW*2
REDUCER350500750zsy315zsy400
BLADE MATERIAL9crsi9crsi9crsi9crsi9crsi
WEIGHT1300kg2500kg5500kg7000kg9500kg
DEMINSION2100*1200*15002400*1500*17004000*1700*20004500*2000*25005500*2200*2500



Double shaft shredder structure
2022031702034869
High strength spindle
The main shaft is made of high-strength alloy steel, processed with high precision, and has good mechanical strength, strong anti-fatigue and impact resistance, and long service life
2022031701555551
Heat treatment process
Appropriate use of heat treatment process makes the overall performance of the tool box better, and it is not easy to deform after long-term use; Significantly improve the mechanical properties of components, greatly extend their service life, and achieve more than one.
2022031701525519
Shredder case
Alloy steel material to create an integral tool, high wear resistance and high strength, repairable and long life; S-shaped tool arrangement, good grasping effect; good interchangeability, low cost, convenient for later maintenance and tool replacement.
2022031701580543
Drive mode
It can be driven by dual motors + dual planetary reducers with low noise, long life and strong power, or by hydraulic motor directly connected to the main shaft. The tool shaft responds more quickly and the pressure loss is smaller.
Motor, reducer, frame, feed hopper, lower hopper, etc.
application

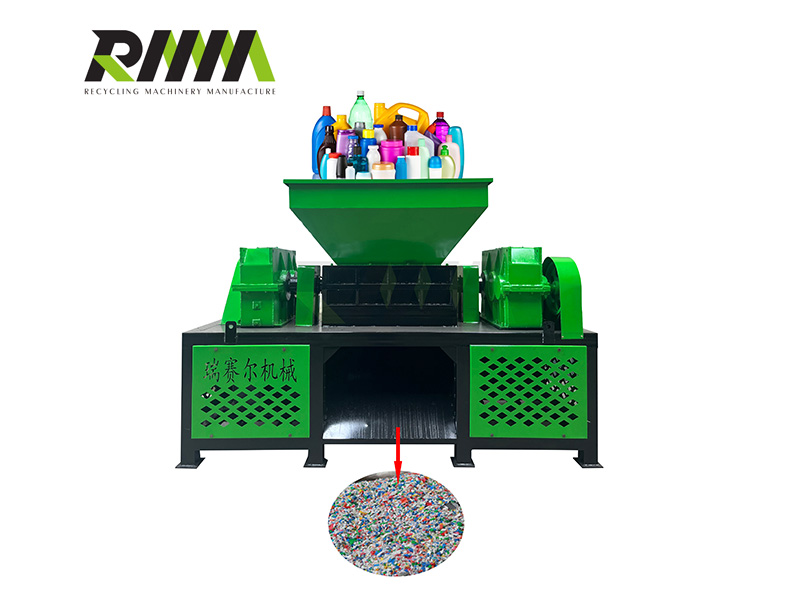

Generally, it can be used to shred solid materials such as plastic, rubber, fiber, paper, wood, electrical devices, cables, etc. that are difficult to break, such as nozzle materials, plastic heads, PET bottles, cardboard, circuit boards, wood, plastic barrels, etc. As long as the material is difficult to shredder, the product that enters the shredder becomes 20x40mm granular. The shredder uses a low knife speed to ensure safety and no harm, low noise, low energy consumption and strong practicability. The materials suitable for crushing are as follows:

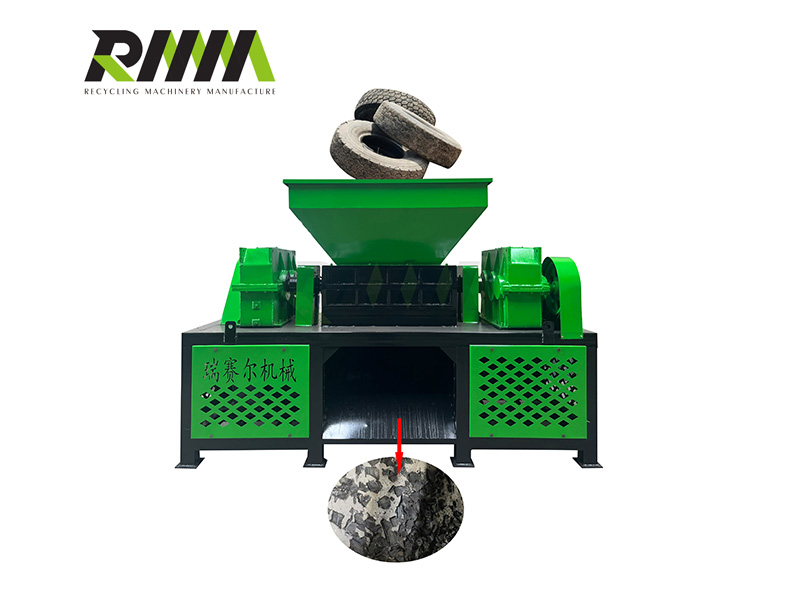

Tires car tires, truck tires
Waste home appliances TV, washing machine, refrigerator housing
Scrap Metal car shell, aluminum alloy, waste cast aluminum,engine shell, lead, and steel plate with a thickness of less than 5mm
Various hollow containers Plastic beverage cans, plastic barrels, iron barrels, packaging boxes, packaging barrels
Bulky Waste Bulky waste is waste that is too large to be removed regularly
Waste Wood wooden pallets, plastic pallets, forklift pallets
Paper& Cardboard Plastic head material, twisted rope in paper mill
Lithium battery With the development of new energy vehicles and electronic products, the supply of lithium batteries ...
